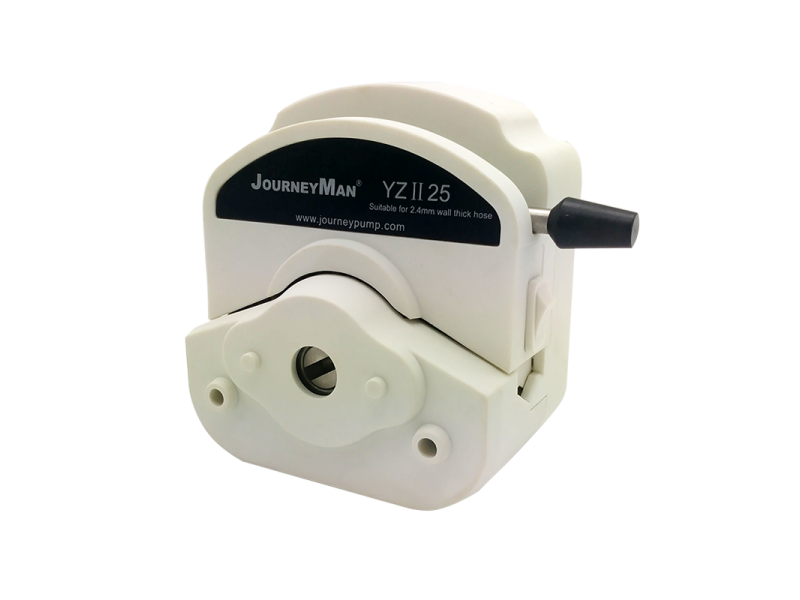

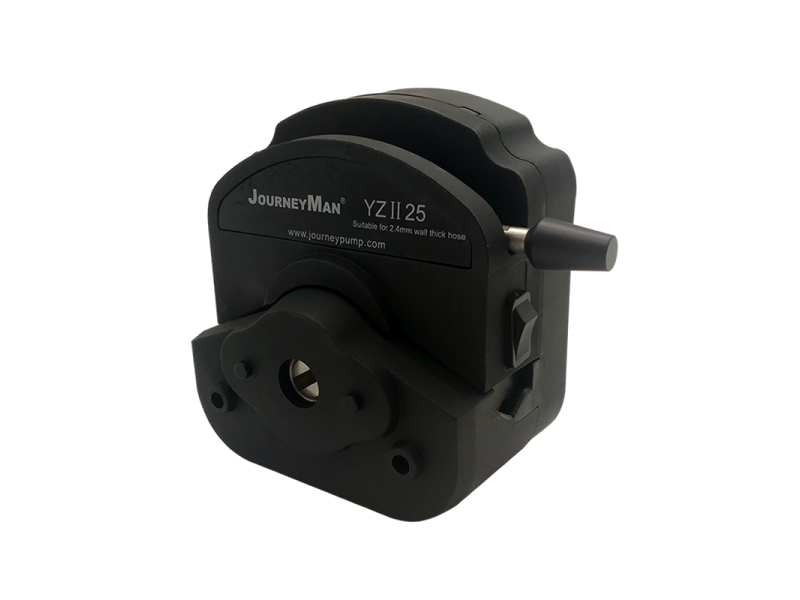

YZⅡ25
Product model：YZⅡ25
Reference flow： 0-3000ml/min
The Easy load peristaltic pump head is the latest product of the company
Product features
◆Flexible 2.4mm hose with 36# inner diameter 9.7mm * wall thickness, and maximum flow of 3L/min
◆The runner adopts imported 304 stainless steel
◆The shell adopts PPS or PSU
◆Precision mold forming technology, perfect industrial design, streamlined appearance
◆Unique rear dustproof rear cover design, more hygienic, clean, easy to clean
◆YZ1515X and YZ2515X are the same size and structure, the difference is that YZ1515X can only be installed 1.6mm card wall thickness tube, YZ2515X card can only be installed hose 2.4mm wall thickness. (negative pressure thick wall a little thinner than the hose hose larger, YZ2515X flow rate to a large number of thick walled tube than thin tube more wear some)
technical parameter
|
Pump head type |
hose |
internal diameter × wall thickness (mm) |
ml/r |
(speed 0.1-600rpm)
Flow range mL/min
|
hose pressure-bearing Mpa |
material &weightkg |
||
|
Interrupted |
continuity |
PSF |
PPS |
|||||
|
YZⅡ25 |
15# |
4.8×2.4 |
1.7 |
0.17-1020 |
0.27 |
0.17 |
0.40
(3 rollers)
0.44
(6 rollers)
|
0.46
(3 rollers)
0.50
(6 rollers)
|
|
24# |
6.4×2.4 |
2.9 |
0.29-1740 |
|||||
|
35# |
7.9x2.4 |
3.6 |
0.36-2200 |
|||||
|
36# |
9.6x2.4 |
5 |
0.5-3000 |
|||||

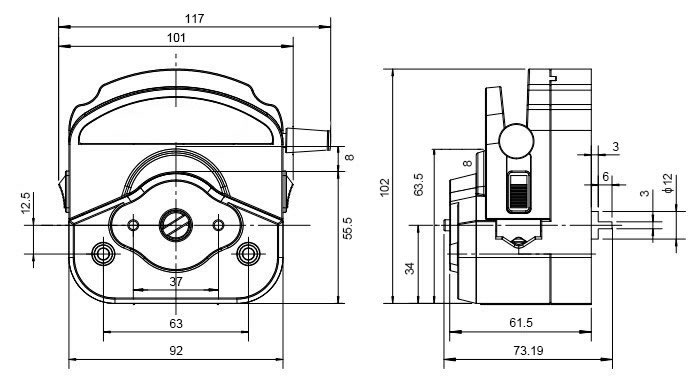

Outline size
