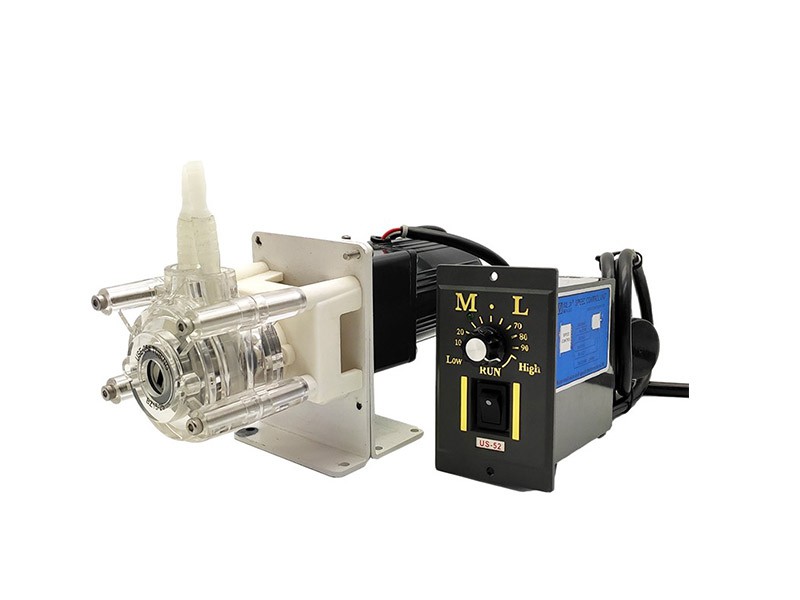

Bz-oem-ac
Product model：Bz-oem-ac
Reference flow： 0.007-2280ml/min
Standard Peristaltic Pump Head BZ series features:
Original design, pump head model and the use of hose specifications one-to-one correspondence, the operation and stability.
Smooth operation, can be used in series;
Compact Pump Head, simple design;
The pump head should be removed from the driver when the hose is installed;
Standard pump head, pressure tube clearance fixed,
Convenient for OEM mode matching application.
Function and characteristics
Product model: BZ-OEM-ac decelerating motor
Applicable Pump Head: BZ series
Motor Type: AC deceleration motor
Supply voltage: 24V
Motor phase number: 2
Motor Power: 25W
Speed Range (rpm) : 1-450 rpm
Maximum flow: 1710ml/min
Operating Temperature: 0-40
Working Environment Humidity: <80%
Full weight: 3kg
Technical specifications
| Model | BZ25 | BZ25 | BZ15 | BZ15 | BZ15 | BZ15 |
| Suitable for hoses | 35# | 24# | 18# | 25# | 16# | 14# |
| Suitable for hose outside diameter | 12.8mm | 11.2mm | 11.2mm | 8mm | 6.4mm | 4.8mm |
| Suitable for inside diameter of hose | 7.9mm | 6.4mm | 7.9mm | 4.8mm | 3.2mm | 1.6mm |
Other parameters
| Model | Number of rollers | Roller material | Shell material | Speed Range(rpm) | Maximum reference flow(ml/min) | Weight(kg) |
| BZ15-14 | 3 | Stainless steel | PC | ≤600 | 150 | 0.31 |
| BZ15 -16 | 460 | |||||
| BZ15-25 | 960 | |||||
| BZ15 -18 | 2280 | |||||
| BZ25 -24 | 1600 | |||||
| BZ25-35 | 2280 |
