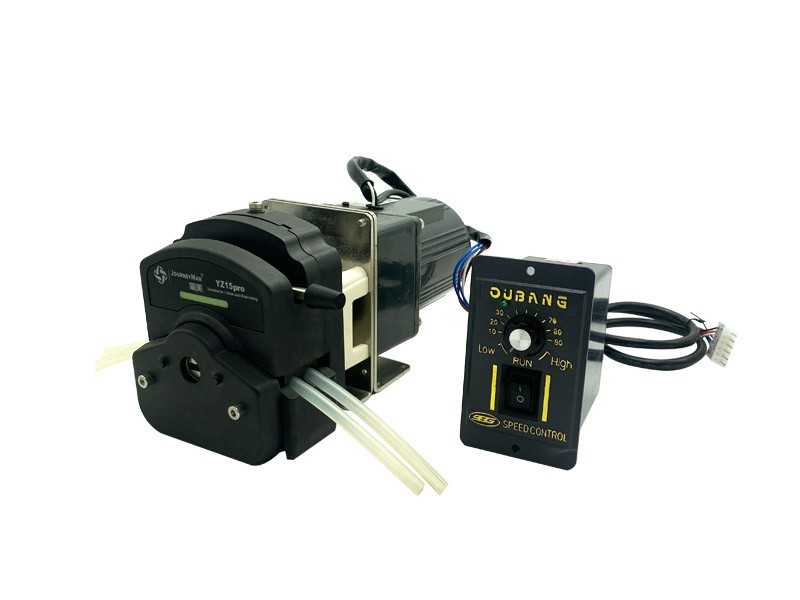

YZ15pro双通道 -OEM交流
Product model：YZ15pro双通道 -OEM交流
Reference flow： 每通道1020ml
Product characteristics
◆5 kinds of hose can be installed, suitable for accurate flow transmission.
◆On the top of the screw, can adjust the pressure of the pipe, enhance the adaptability of the pump head.
◆Under pressure type spring tube clip, enhance the ease of use of the pump head.
◆The runner adopts imported 304 stainless steel.
◆The shell is made of PPS material with good corrosion resistance.
◆Precision molding technology, perfect industrial design, streamline appearance.
◆And YZ series products are all the same size and structure, installation hole compatible.
Product model: OEM-jt8025
Applicable Pump Head: yz15pro dual-channel
Motor Type: AC deceleration motor
Supply voltage: 24V
Motor phase number: 2
Motor Power: 25W
Speed Range (rpm) : 1-450 rpm
Maximum Flow: 765ML/min * 2
Operating Temperature: 0-40
Working Environment Humidity: < 80%
Full weight: 3kg
Technical parameters
| Pump head type | Hose | Inner diameter × wall thickness (mm） |
ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Tube pressure MPA | Material & weight KG | |
| Discontinuity | Continuous |
PPS |
|||||
|
YZ15pro Double Channel |
13#*2 |
0.8×1.6 |
0.07 |
0.007-42 |
0.27 |
0.17 |
0.55
(three rollers)
0.60
(six rollers)
|
|
14#*2 |
1.6×1.6 |
0.27 |
0.027-162 |
||||
|
19#*2 |
2.4×1.6 |
0.55 |
0.055-330 |
||||
|
16#*2 |
3.1×1.6 |
0.82 |
0.082-492 |
||||
|
25#*2 |
4.8×1.6 |
1.7 |
0.17-1020 | ||||
