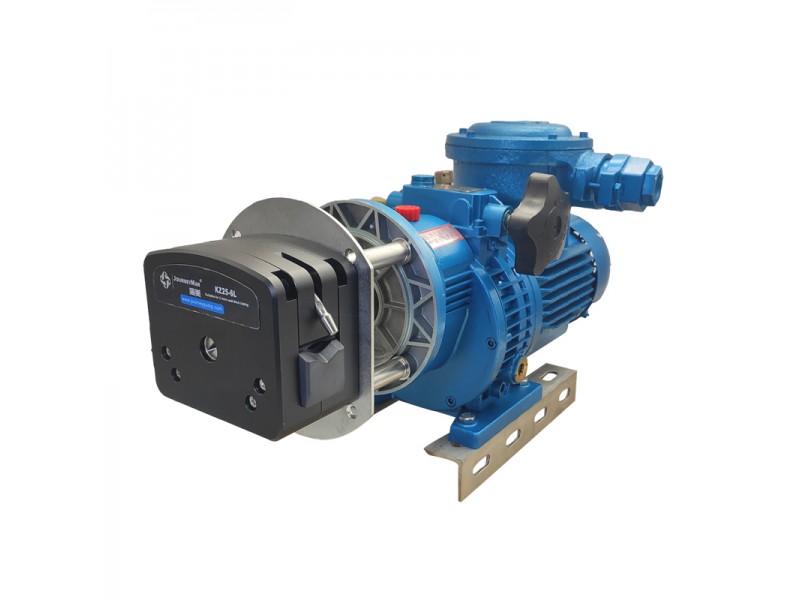

EXPLOSION-PROOF PERISTALTIC pump
Product model：FB600
Reference flow： 0-6000ml/min
Product description
• Using industrial-grade explosion-proof motor (ExdIIBT4) drive, with special pump head, safe and reliable
•Integral design, no need for frequency converter, with start and stop, manual speed control functions
• The speed can be adjusted by hand wheel at any time during operation
• Can install a variety of peristaltic pump head, suitable for a variety of hoses
•IP55 high protection level, suitable for complex working environment
Note: protective housing can be added
Technical parameters
• Speed Range: 135-600 rpm
• Speed Regulation: manual stepless speed regulation
• Handwheel resolution: 0.2 RPM (25 rpm with one turn)
• Control function: Start and stop, manual speed control and other functions
• Supply voltage: 3-phase 380V 50HZ
• Power: 0.37 kw
• Working environment: ambient temperature 0-40 ° C, relative humidity < 80%
• Motor explosion-proof level: EXDIIBT4
• Protection Class: IP55(motor only)
• Dimensions (length × width × height) : 576 × 345 × 393mm
• Explosion-proof peristaltic pump driver weight: 36.5 kg
| Drive type | Pump Head | Pump head material | Suitable for hoses | Reference flow range (mL/min) | Number of channels |
|
FB600 |
YZ1515x | PPS/PSU | 13# 14# 19# 16# 25# 17# 18# | 0.07-2280 | 1 |
| YZ2515x | PPS/PSU | 15# 24# | 0.17-1740 | 1 | |
| YZ15pro | PPS | 13# 14# 19# 16# 25# 17# 18# | 0.07-2280 | 1 | |
| YZ25pro | PPS | 15# 24# 35# 36# | 0.17-3000 | 1 | |
| YZ25plus | PPS | 15# 24# 35# 36# | 0.17-6000 | 1 | |
| YZ35mini | PPS | 73# 82# | 1.0-8500 | 1 | |
| KZ15 | AL | 13# 14# 19# 16# 25# 17# 18# | 0.07-2280 | 1 | |
| KZ25-3L | AL | 15# 24# 35# 36# | 0.17-3000 | 1 | |
| KZ25-6L | AL | 15# 24# 35# 36# | 0.17-6000 | 1 | |
| KZ35-8L | AL | 73# 82# | 1.0-8500 | 1 | |
| YZ35 | AL | 73# 82# | 20.0-12000 | 1 |
