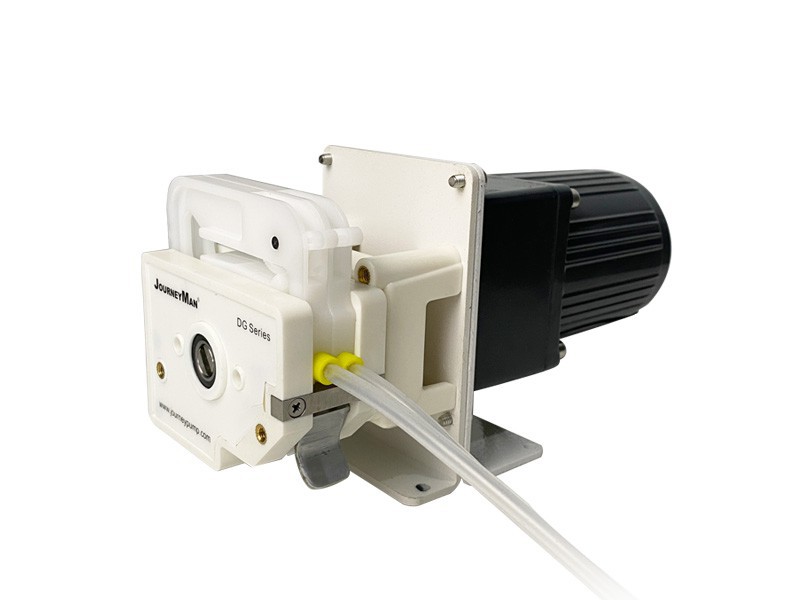

Product model：DG-OEM-JT7015
Reference flow：
Main features
DG series pump head is designed for small flow, multi-channel fluid delivery, easy to replace and fixed pipe
The pressure tube clearance can be adjusted slightly. The roller is made of acetyl copolymer and the pump shell is made of POM.
Function and characteristics
Model：OEM-jt90120
Suitable for pump head：DG series
Motor Type: AC deceleration motor
Supply voltage: 24V
Motor phase number: 2
Motor Power: 120W
Speed Range (rpm) : 1-450 rpm
Maximum flow: 1710ml/min per channel
Operating Temperature: 0-40
Working Environment Humidity: < 80%
Full weight: 5 kg

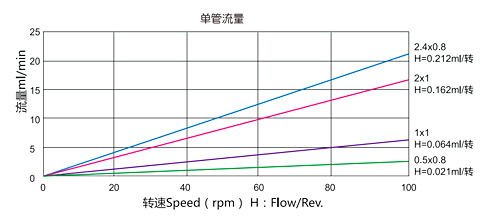

Flow curve

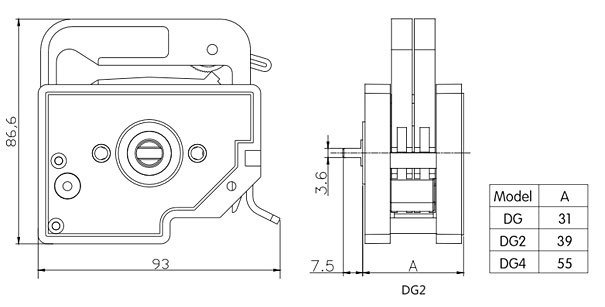

External dimensions
Selection Guide
|
Models |
Flow Range |
Suitable for hoses |
Clamp pipe way |
Pump shell material |
Roller material |
Roll on the number | Clearance Adjustment |
Weight (kg） |
|
DG1 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8， 2.4×0.8 |
Adaptive | PPS/PVDF | 304 stainless steel |
6/10 |
Fixed |
0.2 |
|
DG2 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8， 2.4×0.8 |
Adaptive |
PPS/PVDF |
304 stainless steel |
6/10 | Fixed |
0.3 |
|
DG4 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8 ，2.4×0.8 |
Adaptive |
PPS/PVDF |
304 stainless steel |
6/10 |
Fixed | 0.5 |
