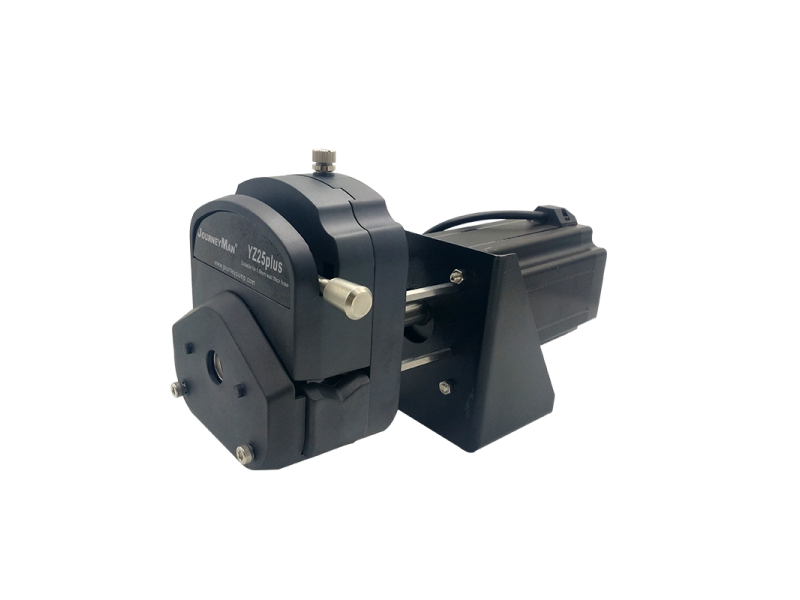

Step Motor_Journeyman Peristaltic Pump

Step Motor

Product model：YZ25PLUS-OEM

Reference flow： 1-6000ml/min

brief introduction:

Product model: OEM-BJ86+YZ25plus

Applicable pump head: YZ25plus

Maximum flow: 6000ml/min

Motor type: stepping motor

Supply voltage: 48V

Step Angle (c): 1.8

Hold torque (N.m): 12

Rated current (A): 5

Recommended driving voltage (V): 50

Resistance/phase (ohm):0.55

Inductance/phase (MH): 7

Rotor feed (g.m2): 4.45

Lead number (serial number):4

Weight (kg):5.5

Shaft diameter (mm): 14

Speed range (RPM):0.1-600RPM

Working environment temperature: 0-40

Working environment humidity: <80%

Pump head type	hose	internal diameter × wall thickness (mm)	ml/r	(speed 0.1-600rpm) Flow range mL/min	hose pressure-bearing Mpa		material &weightkg
					Interrupted	continuity	PPS
YZ25plus	15#	4.8×2.4	1.7	0.17-1820	0.27	0.17	1kg
	24#	6.4×2.4	2.9	0.29-3500
	35#	7.9x2.4	3.6	0.36-5000
	36#	9.6x2.4	5	0.5-6000
YZ35mini	73#	9.6x3.3	5	1-6000	0.27	0.17	1kg
	82#	12.7*3.3	14	2-8500
