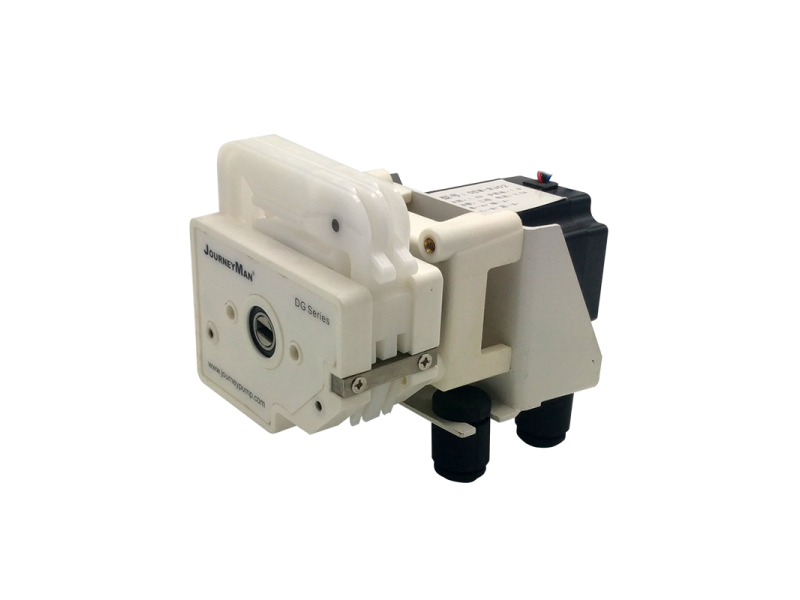

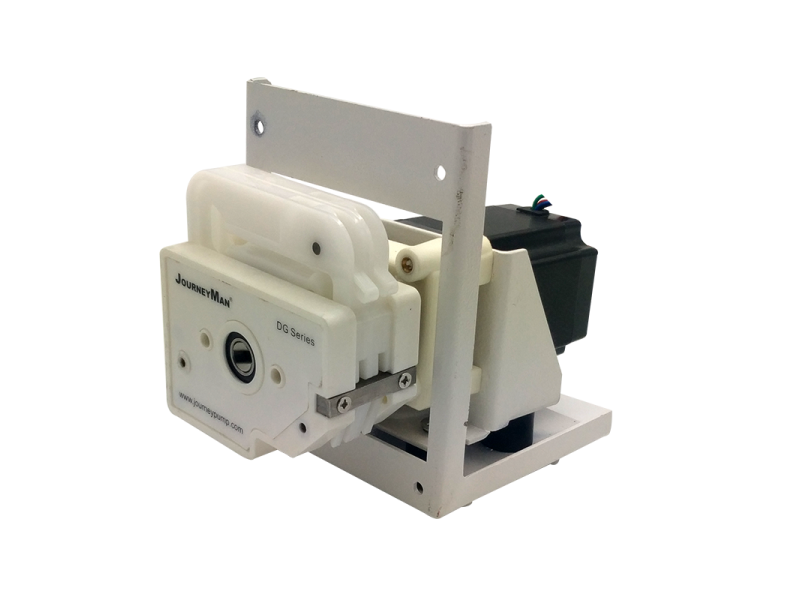

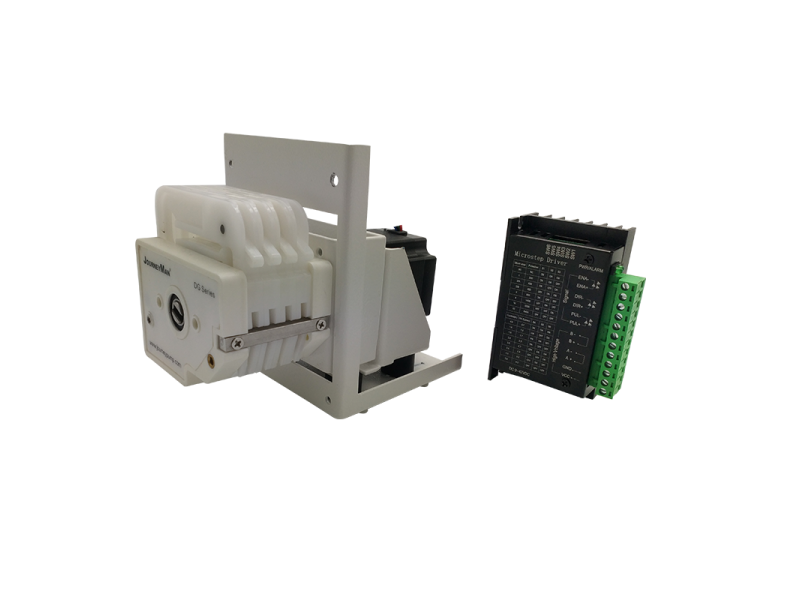

Step Motor
Product model：DG-OEM-BJ57
Reference flow：
Main features
DG series pump head is designed for small flow, multi-channel fluid delivery, easy to replace and fixed pipe
The pressure tube clearance can be adjusted slightly. The roller is made of acetyl copolymer and the pump shell is made of POM.
Function and characteristics
Model：DG-OEM-BJ57
Applicable Pump Head: DG Series
Motor type: stepping motor
Supply voltage: 3.3-5V or, 12V-24V
Motor phase number: 2
Motor step angle: 1.8 degrees
Motor Phase Voltage: 3.75 V
Motor Phase Current: 3.0 A
Motor Power: <60W
Motor Size: 57 step motor
Speed Range (rpm) : 0.1-600 rpm
Operating Temperature: 0-40
Working Environment Humidity:< 80%
Full weight: 3kg
Flow curve
External dimensions
Selection Guide
|
Models |
Flow Range |
Suitable for hoses |
Clamp pipe way |
Pump shell material |
Roller material |
Roll on the number | Clearance Adjustment |
Weight (kg） |
|
DG1 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8， 2.4×0.8 |
Adaptive | PPS/PVDF | 304 stainless steel |
6/10 |
Fixed |
0.2 |
|
DG2 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8， 2.4×0.8 |
Adaptive |
PPS/PVDF |
304 stainless steel |
6/10 | Fixed |
0.3 |
|
DG4 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8 ，2.4×0.8 |
Adaptive |
PPS/PVDF |
304 stainless steel |
6/10 |
Fixed | 0.5 |
