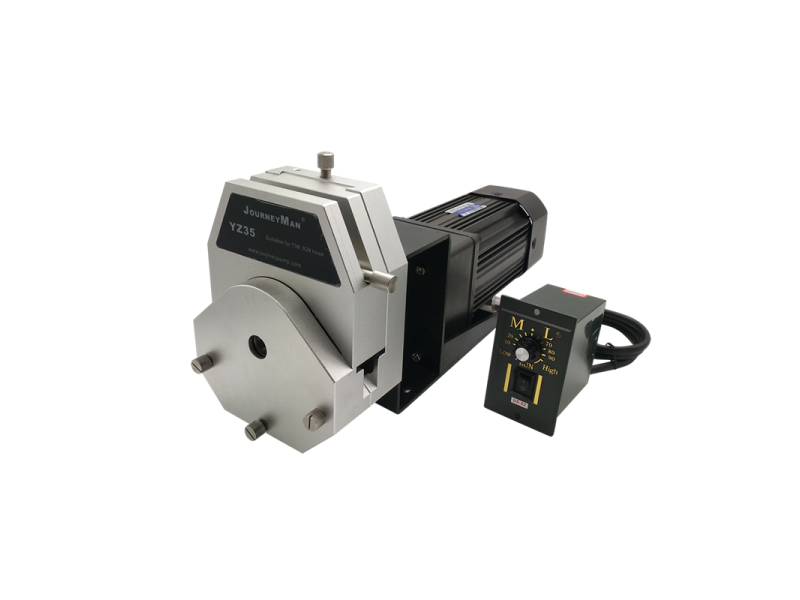

AC Motor
Product model：YZ35-OEM-JT104370
Reference flow： 1-10000ml/min
brief introduction:
Product model: oem-jt104370
Applicable pump head: YZ35 (AL)
Motor type: ac motor
Power supply voltage: 220v/110
Motor phase number: 2
Motor power: 370W
Speed range (RPM): 1-450rpm
Maximum flow: 10000ml/min/ per channel
Working environment temperature: 0-40
Working environment humidity: <80%
Weight: 12kg(excluding pump head)
|
Pump head type |
hose |
internal diameter × wall thickness(mm) |
ml/r |
（speed0.1-600rpm）
Flow range mL/min
|
Hose pressureMpa |
material |
weight kg |
|
|
Interrupted |
continuity |
|||||||
|
YZ35 |
26# |
6.4×3.3 |
6.9 |
0.69-4200 |
0.27 |
0.20 |
Aluminium alloy |
4.36 |
|
73# |
9.6×3.3 |
12.3 |
1.23-7400 |
|||||
|
82# |
12.7×3.3 |
20 |
2-12000 |
0.14 |
0.10 |
|||
Figure of product size (line drawing)
