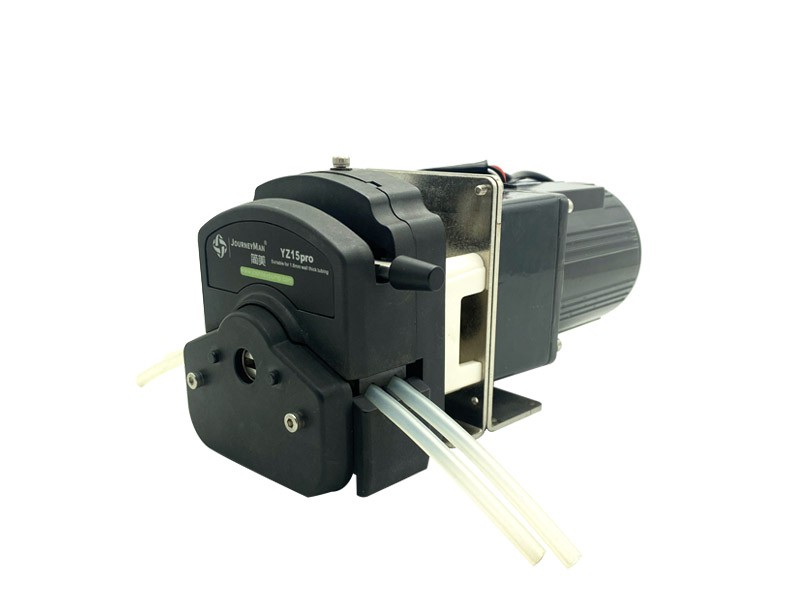

Yz15pro dual-channel-OEM-ac motor
Product model：Yz15pro dual-channel-OEM-ac motor
Reference flow： 每通道1020ml
Product characteristics
◆5 kinds of hose can be installed, suitable for accurate flow transmission.
◆On the top of the screw, can adjust the pressure of the pipe, enhance the adaptability of the pump head.
◆Under pressure type spring tube clip, enhance the ease of use of the pump head.
◆The runner adopts imported 304 stainless steel.
◆The shell is made of PPS material with good corrosion resistance.
◆Precision molding technology, perfect industrial design, streamline appearance.
◆And YZ series products are all the same size and structure, installation hole compatible.
Product model:-oem-ac deceleration motor
Applicable Pump Head: YZ15pro
Motor Type: AC deceleration motor
Supply voltage: 24V
Motor phase number: 2
Motor Power: 120W
Speed Range (rpm) : 1-450 rpm
Maximum flow: 1710ml/min per channel
Operating Temperature: 0-40
Working Environment Humidity: < 80%
Full weight: 5 kg
Technical parameters
|
Pump head type |
Hose |
Inner diameter × wall thickness (mm) |
ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Tube pressure MPA |
Material & weight KG |
|
|
Discontinuity |
Continuous |
PPS |
|||||
|
YZ15pro Double Channel |
13#*2 |
0.8×1.6 |
0.07 |
0.007-42 |
0.27 |
0.17 |
0.55
(three rollers)
0.60
(six rollers)
|
|
14#*2 |
1.6×1.6 |
0.27 |
0.027-162 |
||||
|
19#*2 |
2.4×1.6 |
0.55 |
0.055-330 |
||||
|
16#*2 |
3.1×1.6 |
0.82 |
0.082-492 |
||||
|
25#*2 |
4.8×1.6 |
1.7 |
0.17-1020 |
0.24 |
0.14 | ||
