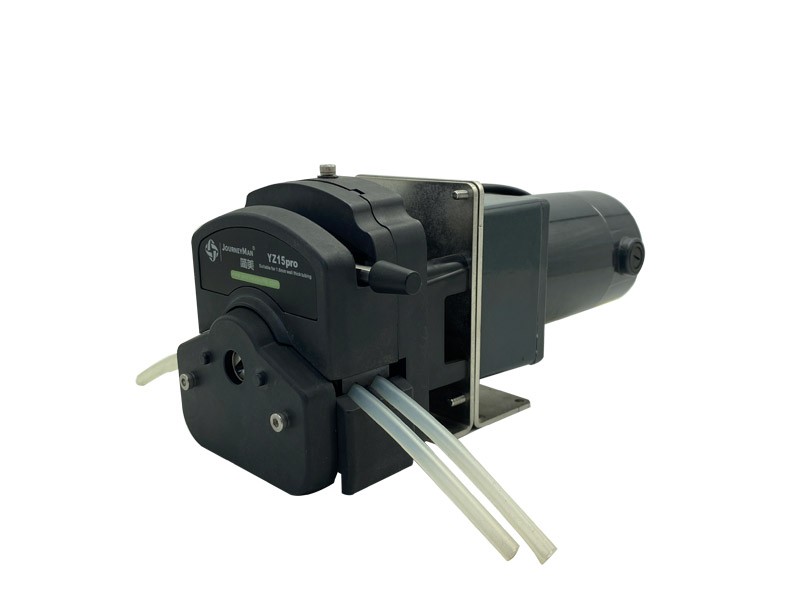

YZ15PRO-OEM-DC motor
Product model：YZ15PRO-OEM-DC motor
Reference flow： 0.007-2280mL/min
Product characteristics
◆It can pack 7 kinds of hose, suitable for accurate flow transmission.
◆On the top of the screw, can adjust the pressure of the pipe, enhance the adaptability of the pump head.
◆Under pressure type spring tube clip, enhance the ease of use of the pump head.
◆The runner adopts imported 304 stainless steel.
◆The shell is made of PPS material with good corrosion resistance.
◆Precision molding technology, perfect industrial design, streamline appearance.
◆And YZ series products are all the same size and structure, installation hole compatible.
Function and characteristics
Product model: OEM-ZL6020/ZL/8060
Applicable Pump Head: YZ15pro
Motor type: DC deceleration motor
Supply voltage: 24V
Motor phase number: 2
Motor Power: < 20W/60W
Speed Range (rpm) : 1-600 rpm
Operating Temperature: 0-40
Working Environment Humidity:< 80%
Full weight: 3kg
Technical parameters
|
Pump head type |
Hose |
Inner diameter × wall thickness (mm) |
ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Tube pressure MPA |
Material & weight KG |
|
| Discontinuity |
Continuous |
PPS |
|||||
|
YZ15pro |
13# |
0.8×1.6 |
0.07 |
0.007-42 |
0.27 |
0.17 |
0.55
(three rollers)
0.60
(six rollers)
|
|
14# |
1.6×1.6 |
0.27 |
0.027-162 |
||||
|
19# |
2.4×1.6 |
0.55 |
0.055-330 |
||||
|
16# |
3.1×1.6 |
0.82 |
0.082-492 |
||||
|
25# |
4.8×1.6 |
1.7 |
0.17-1020 |
0.24 |
0.14 |
||
|
17# |
6.4×1.6 |
2.9 |
0.29-1740 |
0.14 |
0.10 |
||
|
18# |
7.9×1.6 |
3.8 |
0.38-2280 |
0.10 |
0.07 | ||
