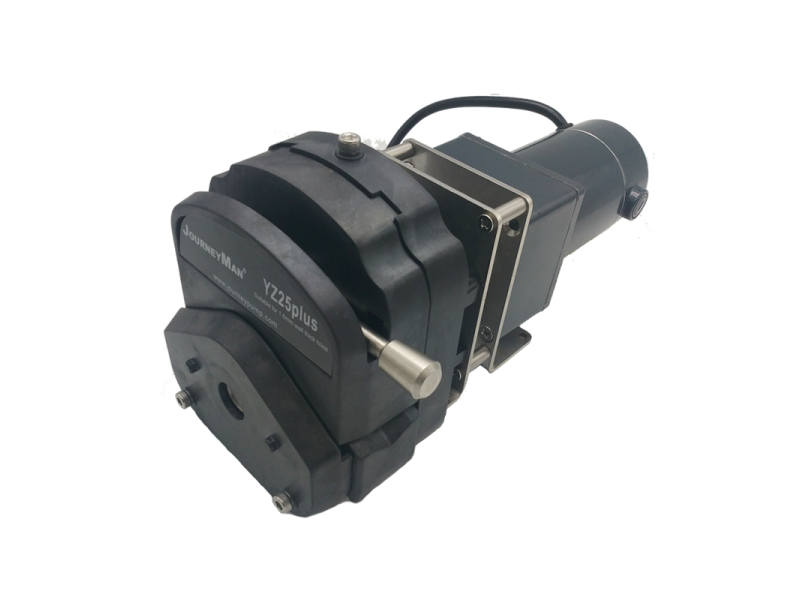

YZ25plus-OEM-ZL8060
Product model：YZ25plus-OEM-ZL8060
Reference flow： 1-6000mL/min
brief introduction:
Model：OEM-ZL8060+YZ25plus
Suitable for pump head：YZ25plus
Maximum flow：6000ml/min
Motor type: DC Motor
Supply voltage: 12V or 24V
Motor phase number：2
Motor Size: 80 DC motor
Speed Range(rpm):1-600RPM
Working environment temperature：0-40
Humidity of working environment：<80%
Full weight：4kg
Flow parameters
| Pump head type | Hose | Inner diameter × wall thickness (mm) | ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Hose under pressureMpa | Material & weight KG | ||
|
Discontinuity |
Continuous |
PSF |
PPS |
|||||
| YZ25plus | 15# | 4.8×2.4 | 3 | 0.17-1800 | 0.27 | 0.17 |
0.40(three rollers)0.44(six rollers)
|
0.46(three rollers)0.50(six rollers)
|
| 24# | 6.4×2.4 | 5.8 | 0.29-3500 | |||||
| 35# | 7.9x2.4 | 8.3 | 0.36-5000 | |||||
| 36# | 9.6x2.4 | 10 | 0.5-6000 | |||||
