Step Motor

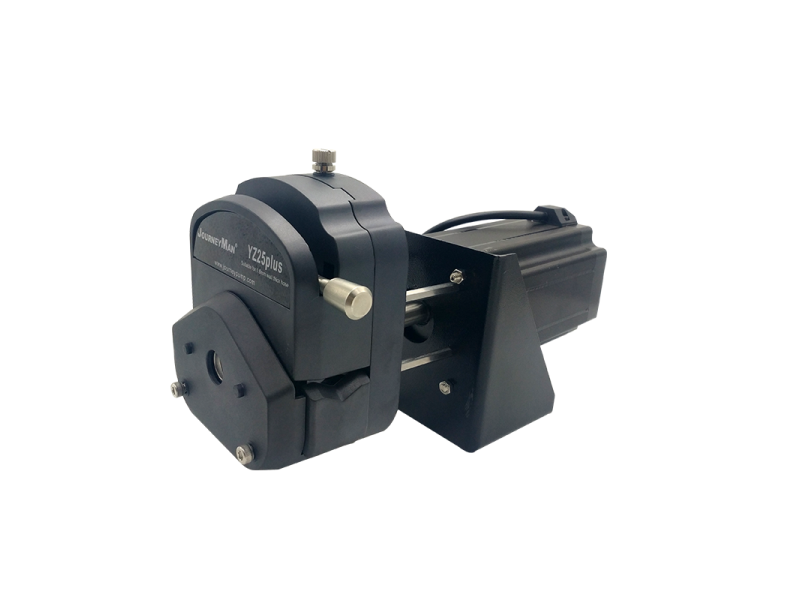

Product model：YZ25PLUS-OEM
Reference flow： 1-6000ml/min
brief introduction:
Product model: OEM-BJ86+YZ25plus
Applicable pump head: YZ25plus
Maximum flow: 6000ml/min
Motor type: stepping motor
Supply voltage: 48V
Step Angle (c): 1.8
Hold torque (N.m): 12
Rated current (A): 5
Recommended driving voltage (V): 50
Resistance/phase (ohm):0.55
Inductance/phase (MH): 7
Rotor feed (g.m2): 4.45
Lead number (serial number):4
Weight (kg):5.5
Shaft diameter (mm): 14
Speed range (RPM):0.1-600RPM
Working environment temperature: 0-40
Working environment humidity: <80%
|
Pump head type |
hose |
internal diameter × wall thickness (mm) |
ml/r |
(speed 0.1-600rpm)
Flow range mL/min
|
hose pressure-bearing Mpa |
material &weightkg |
|
|
Interrupted |
continuity |
PPS |
|||||
|
YZ25plus |
15# |
4.8×2.4 |
1.7 |
0.17-1820 |
0.27 |
0.17 |
1kg
|
|
24# |
6.4×2.4 |
2.9 |
0.29-3500 |
||||
|
35# |
7.9x2.4 |
3.6 |
0.36-5000 |
||||
|
36# |
9.6x2.4 |
5 |
0.5-6000 |
||||
| YZ35mini | 73# | 9.6x3.3 | 5 | 1-6000 | 0.27 | 0.17 |
1kg
|
| 82# | 12.7*3.3 | 14 | 2-8500 | ||||
