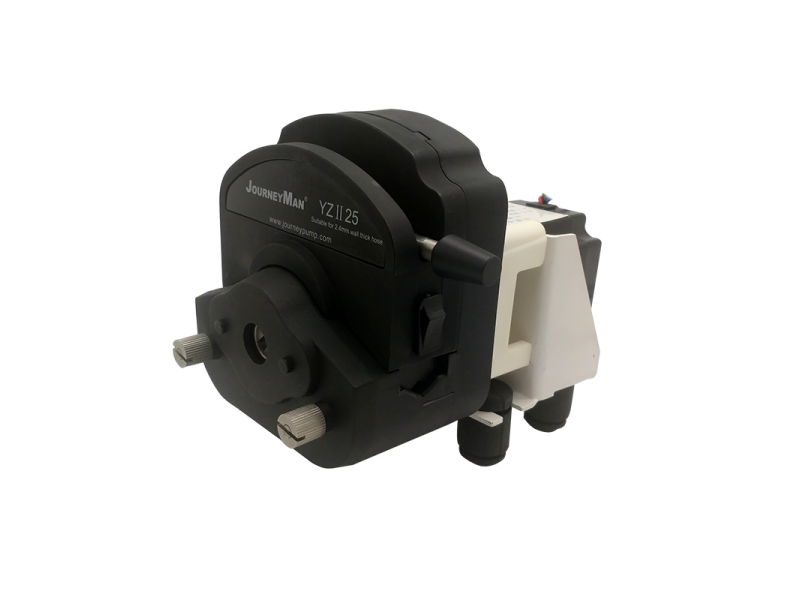

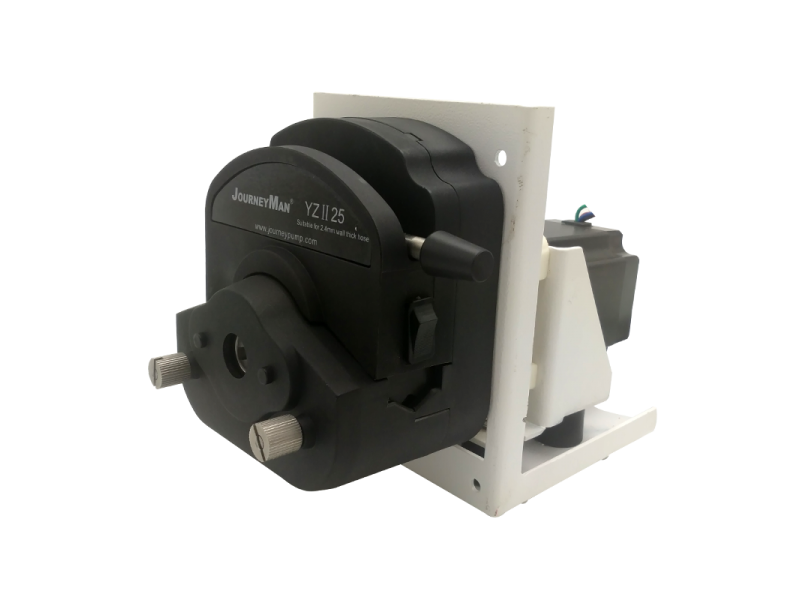

Product model: OEM - YZ Ⅱ BJ57 + 25

The range of the pump head: YZ Ⅱ 25

Maximum flow: 3000ml/min

Motor type: stepping motor

Supply voltage: 3.3-5v or 12v-24v

Motor phase number: 2

Motor step Angle: 1.8 degrees

Motor phase voltage: 3.75v

Motor phase current: 2.8a

Motor size: 57 step motor

Speed range (RPM):0.1-600RPM

Working environment temperature: 0-40

Working environment humidity: <80%

Weight: 3kg
