Speed Range: 5,10,15,30,60,110 rpm, fixed speed optional

Drive Motor: AC synchronous deceleration motor
Applicable power supply: AC 220V/110V

Working environment: ambient temperature 0-40 ° C, relative humidity < 80%
Power consumption: ≤15W

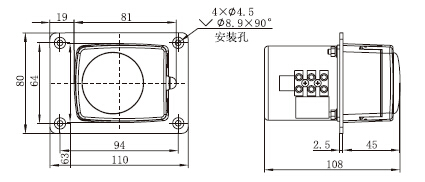

Size (length × width × height) : 107 x 80 x 110(mm)
Applicable Hose: 16 # , 25 #
Drive weight: 0.7 kg

The main characteristics of peristaltic pump

▲AC synchronous motor drive
▲Can provide a maximum flow of 167 ml/min, fixed speed
▲Flexible hose fixed form: elastic clamping type, two types of pipe joint

▲The pump head with a spring greatly increases the life of the hose
▲Beautiful appearance, small size, easy to install, easy to operate and intuitive, suitable for OEM matching use
Peristaltic pump flow parameters
Th15 pump head for 16 # 25 # hose, maximum reference flow ≤167 ml/min, support 1 channel
Typical application of peristaltic pump

Widely used in equipment feeding, feeding and transmission. Such as fermentation feed, dry feed and other industrial fields.
