KZ25 aluminum

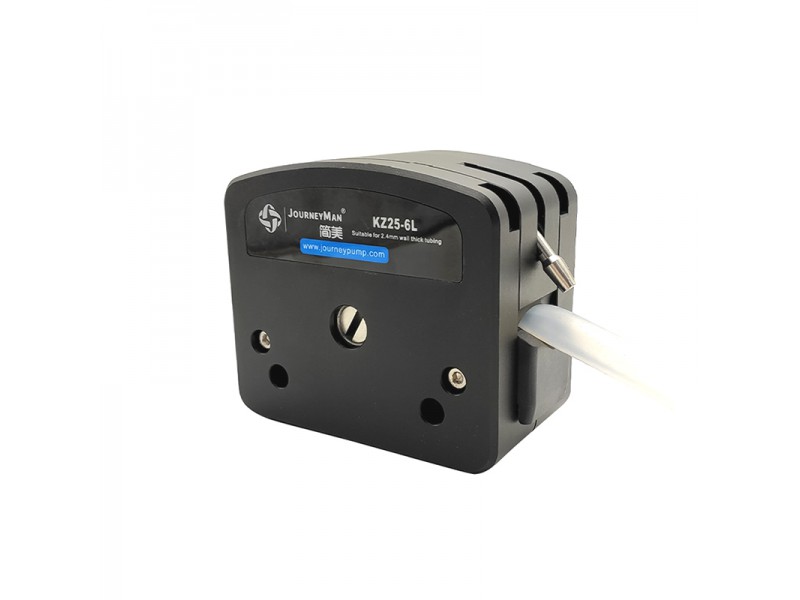

Product model：KZ25-6L
Reference flow： 0-6000ml/min
brief introduction:
Product characteristics
◆The runner is made of imported 304 stainless steel.
◆The use of adaptive spring tube card, more easy to use.
◆Quick-loading structure, easy to change pipes.
◆The shell is made of aluminium alloy.
◆Corrosion-resistant surface, perfect industrial design, streamlined appearance.
Technical parameters
|
Pump head type |
Hose | Inner diameter × wall thickness (mm) | ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Hose pressure MPA |
Material & weight KG |
||
|
Discontinuity |
Continuous |
AL |
AL |
|||||
|
KZ25-6L |
15# |
4.8×2.4 |
1.7 |
0.17-1800 |
0.27 |
0.17 |
1.7(three rollers)
|
1.7(three rollers)
|
|
24# |
6.4×2.4 |
2.9 |
0.29-3500 |
|||||
|
35# |
7.9x2.4 |
3.6 |
0.36-5000 |
|||||
|
36# |
9.6x2.4 |
5 |
0.5-6000 | |||||
