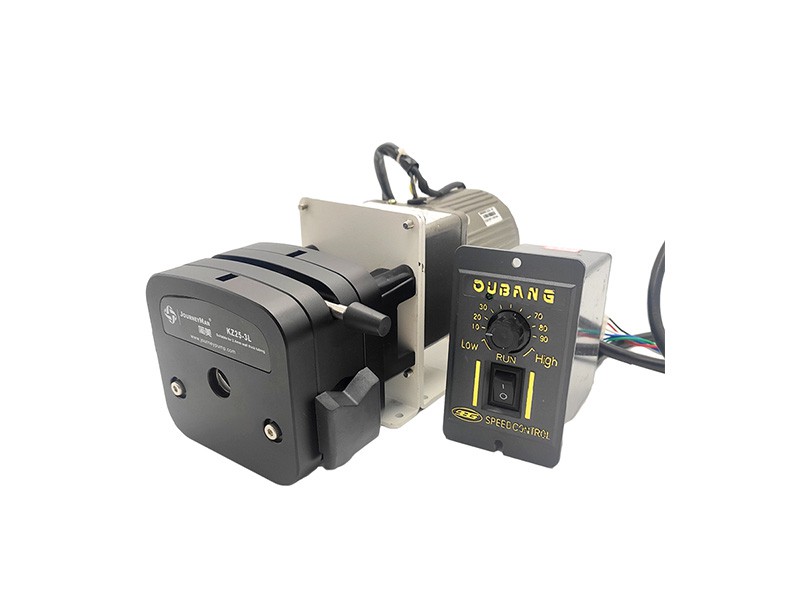

KZ25-3L-OEM-AC
Product model：KZ25-3L-OEM-AC
Reference flow： 0.17-3000ml/min
Product characteristics
◆36 # peristaltic pump hose with inner diameter of 9.7 mm × wall thickness of 2.4 mm can be installed, and the maximum flow rate reaches an amazing 3 l/min
◆The runner adopts imported 304 stainless steel (optional POM)
◆The shell is made of aluminum alloy
Product model: KZ25-3L-OEM-AC Speed Reduction Motor
Applicable Pump Head: KZ25-3L
Motor Type: AC deceleration motor
Supply voltage: 220V/110
Motor phase number: 3
Motor Power: 120W
Speed Range (rpm) : 1-450 rpm
Maximum flow: 4500 ml/min per channel
Operating Temperature: 0-40
Working Environment Humidity: < 80%
Full weight: 5 kg
Technical parameters
|
Pump head type |
Hose | Inner diameter × wall thickness (mm) | ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Hose pressure MPA |
Material & weight KG | ||
|
Discontinuity |
Continuous |
AL |
|
|||||
|
KZ25-3L |
15# | 4.8×2.4 | 1.7 | 0.17-1020 |
0.27 |
0.17 |
1.0(three rollers)
|
|
| 24# | 6.4×2.4 | 2.9 | 0.29-1740 | |||||
| 35# | 7.9x2.4 | 3.6 | 0.36-2200 | |||||
| 36# | 9.6x2.4 | 5 | 0.5-3000 | |||||
External dimensions
