Internal Control Speed Range: 100rpm/300rpm, step adjustment

External control speed range: 1-100 rpm (300 rpm)

Internal Control Speed Control: BCD dial switch adjustment

Start and stop control: Switch control

Applicable power supply: DC 24V or 12V

Working environment: ambient temperature 0-40 ° C, relative humidity & Lt. 80%

Drive weight: 550g

Speed resolution: 1RPM, full range linear

Speed error: ≤ ± 1 rpm

External speed control: 0-10KHz pulse control (or 0-5V, 0-10V, 4-20mA)

Direction Control: Switch control, positive and negative direction reversible

Power consumption: ≤12W

Size (length × width × height) : 115 × 60 × 92(mm)

Applicable hoses: 14 # , 19 # , 16 # , 25 # , 17 #

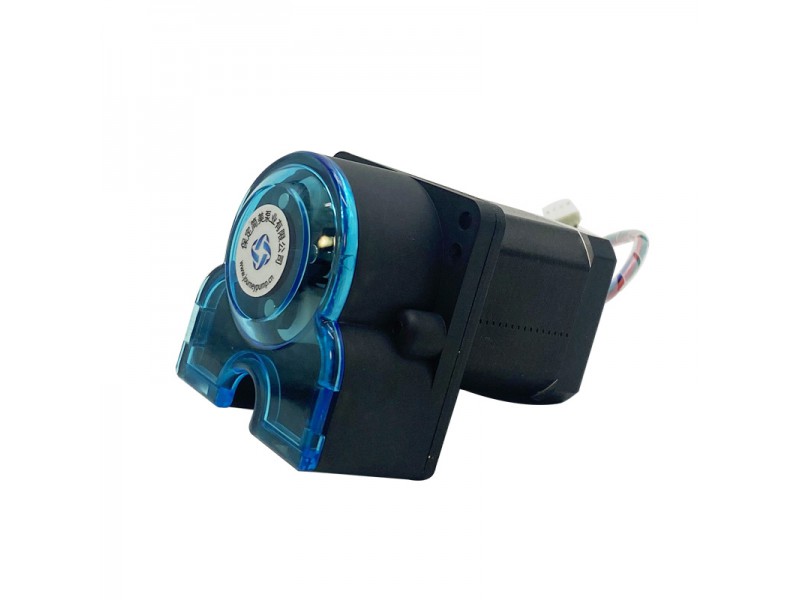

TS100(300)-A/JZ15 peristaltic pump main features

▲Stepper motor subdivision drive, high precision, smooth running

▲The bottom plate type installation way, divides into the internal control, the external control two kinds of control ways

▲Internal control using BCD dial switch, a total of 15, discontinuous speed adjustment

▲External control through 0-10KHz (or 0-10V, 0-5V, 4-20mA) continuous speed regulation

▲RS485 communication control (company can provide Modbus protocol)

▲The switch quantity controls the start, stop and direction

▲Beautiful appearance, small size, simple and intuitive operation, suitable for OEM matching use

▲Installable Pump Head: Jy15-12, JY15-14 series

TS100(300)-A/JY15 peristaltic pump flow parameters

TS100-A drive

Jy15-12(2-roller) pump head, suitable for 14 # , 19 # , 16 # , 25 # , 17 # hose, flow range 0.2-170(mL/min)

Jy15-14(4-roller) pump head, suitable for 14 # , 19 # , 16 # , 25 # , 17 # hose, flow range 0.2-100(mL/min)

TS300-A drive

Jy15-12(2-roller) pump head, suitable for 14 # , 19 # , 16 # , 25 # , 17 # hose, flow range 0.2-510(mL/min)

Jy15-14(4-roller) pump head, suitable for 14 # , 19 # , 16 # , 25 # , 17 # hose, flow range 0.2-300(mL/min)
