YZ35_Journeyman Peristaltic Pump

YZ35

Product model：YZ35

Reference flow： 0.69-12000mL/min

brief introduction:

Product features

YZ35 pump head shell adopts aluminum alloy material.

With stainless steel roller assembly to achieve high-precision liquid transmission.

An adaptive card mechanism allows you to easily fit a hose.

Industry application

Large flow industrial transmission, filling

Function and characteristics

1、Aluminum alloy pump head housing.

2、304 stainless steel roller assembly.

3、Large flow design:12L/min。

technical parameter

Pump head type	hose	internal diameter × wall thickness(mm)	ml/r	（speed0.1-600rpm） Flow range mL/min	Hose pressureMpa		material	weight kg
					Interrupted	continuity
YZ35	26#	6.4×3.3	6.9	0.69-4200	0.27	0.20	Aluminium alloy	4.36
	73#	9.6×3.3	12.3	1.23-7400
	82#	12.7×3.3	20	2-12000	0.14	0.10

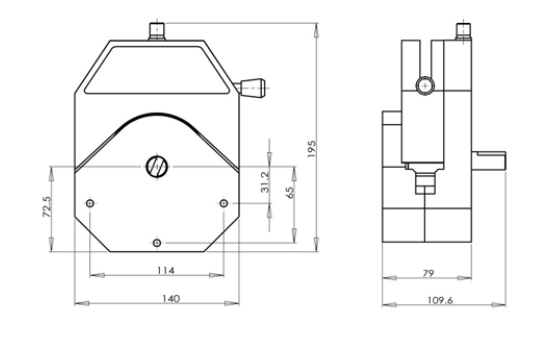

Figure of product size (line drawing)
