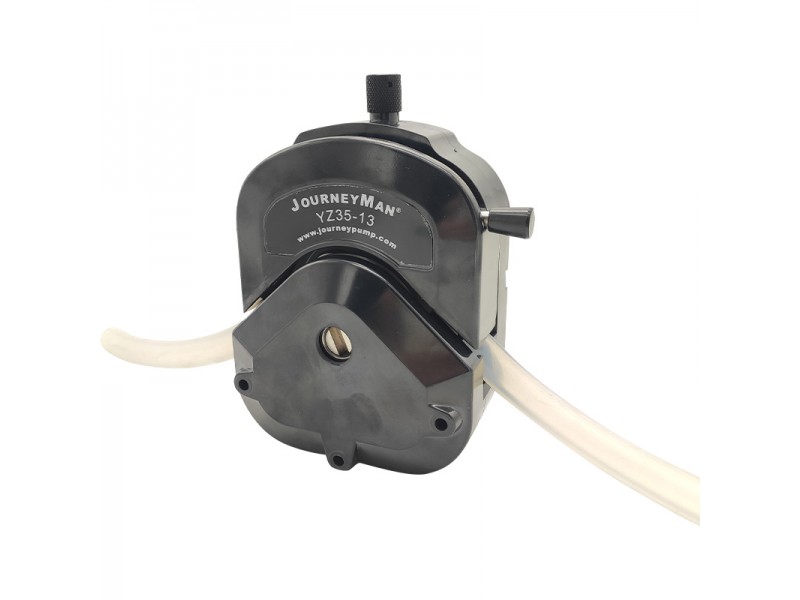

YZ35-13
Product model：YZ35-13
Reference flow： 0.69-12000mL/min
brief introduction:
Product characteristics
-
The YZ35-13 pump head shell is made of PPS Special Engineering Plastics.
-
With stainless steel roller assembly, to achieve high-precision liquid transmission.
-
The self-adapting clamp tube mechanism allows you to install the hose easily.
Industry applications
-
Large flow industrial transmission, filling
-
Function and characteristics
-
PPS Special Engineering Plastic Shell.
-
304 stainless steel roller assembly.
-
High flow design: 12L/min.
技术参数
|
泵头型号 |
软管 |
内径×壁厚(mm) |
毫升/转 |
（转速0.1-600rpm）
流量范围mL/min
|
软管承压Mpa |
材料 |
重量kg |
|
|
间断 |
连续 |
|||||||
|
YZ35-13 |
26# |
6.4×3.3 |
6.9 |
0.69-4200 |
0.27 |
0.20 |
PPS |
1.65 |
|
73# |
9.6×3.3 |
12.3 |
1.23-7400 |
|||||
|
82# |
12.7×3.3 |
20 |
2-12000 |
0.14 |
0.10 |
|||

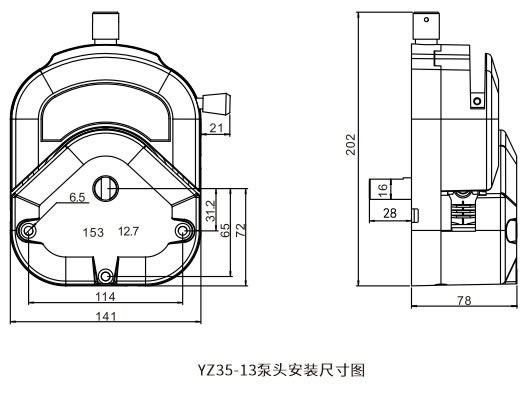

Product appearance size diagram (line diagram)
