BT300F

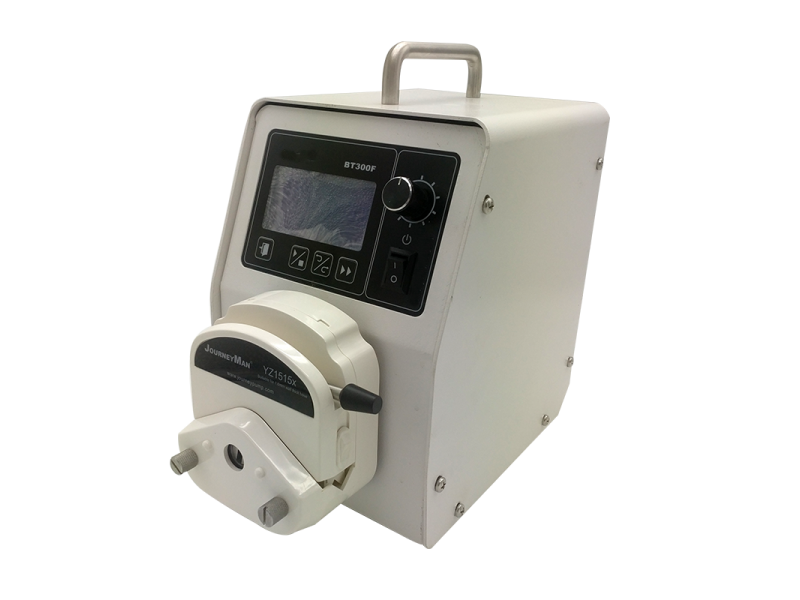

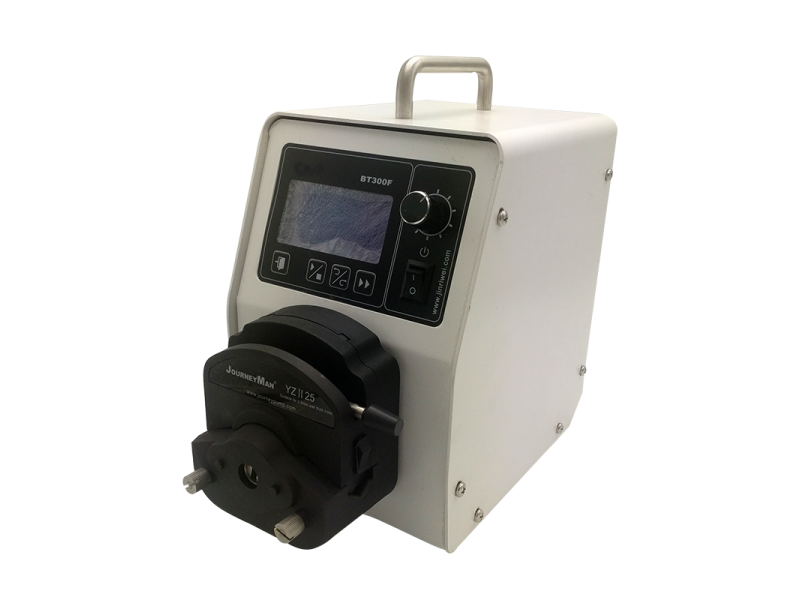

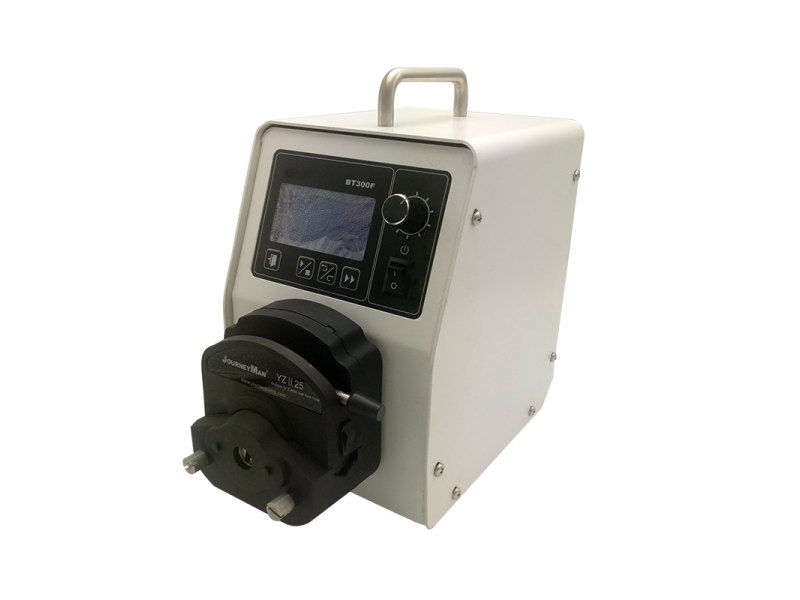

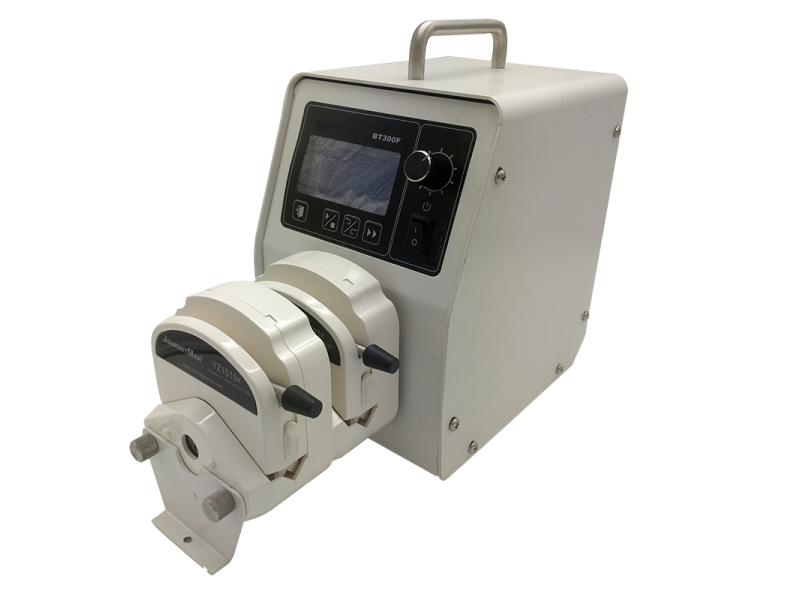

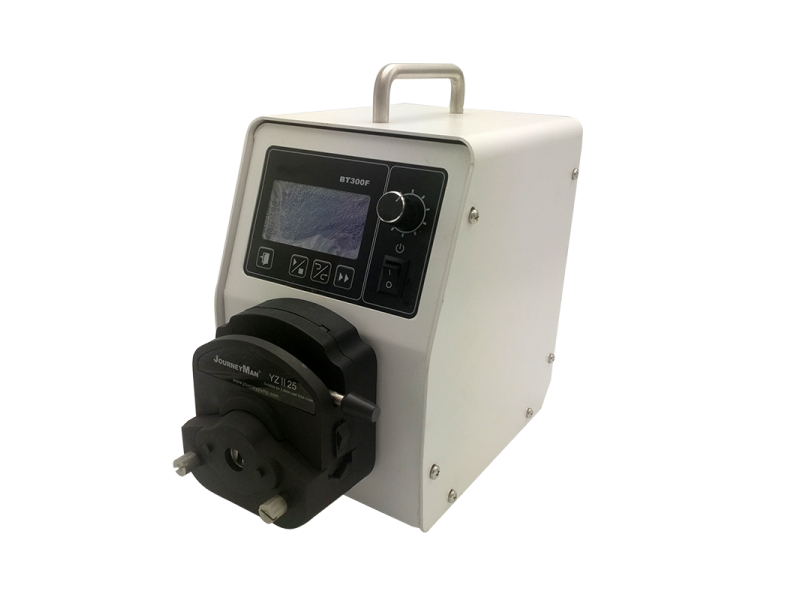

Product model：BT300F
Reference flow： 0.002-1140ml/min
- Applicable pump heads: YZ1515X, YZII15, YZ2515X, YZII25- Set pause time to realize dispensing and filling automatically
- Display can switch between flow rates and rpm- Calibrate setting flow rates to acquire more accurate flow rates
- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.
- Power-off memory: Return to previous state when power on
- Prime: For fast filling and emptying at full speed
- Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
- Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy.
| - Speed: 1 to 300 rpm, CW/CCW |
|
- Speed precision: 1 rpm - Control mode: Control panel, external signal control and communication control are available - Display: LCD for running state - Dispensing volume: 0.1ml to 99.9L - Copy number: 1 to 999, "0" means unlimited cycle - Pause time: 1 to 999 s - Back suction angle: 0-360°, resolution is 18° |
| - External control: Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, external control module optional) |
| - Speed output: 0-5V corresponding to 1-300 rpm |
| - Start/stop output: OC gate signal |
| - Direction output: OC gate signal |
| - Communication interface: RS485 |
| - Back suction angle: 0 to 360°, 18° increments |
| - Power supply : AC 220 V ± 10% 50/60 Hz (standard) or AC110 V ± 10% 50/60 Hz (optional) |
| - Power consumption: < 50 W |
| - Operating condition: Temperature 0 to 40 °C ; Relative humidity < 80% |
| - Dimensions (L × W × H): 202 × 160 × 239 (mm) |
| - Drive weight: 4.3 kg |
| - IP rating: IP 31 |
Other parameters
| Type | Product Code | Pump Head | Tubing | Flow Rate (ml/min) |
Weight (kg) |
| BT300F |
|
YZ1515x,YZII15 | 13# 14# 16# 19# 25# 17# 18# | 1140 | 4.7 |
| YZ2515x | 15# 24# | 840 | |||
| YZII25 | 15# 25# 35# 36# | 1500 | |||
|
DMD15-13-B |
13# 14# 19# 16# 25# | 1040 | 4.7 | ||
| DG15-24 | 15# 25# 17# | 900 (single channel) |
5.1 |
