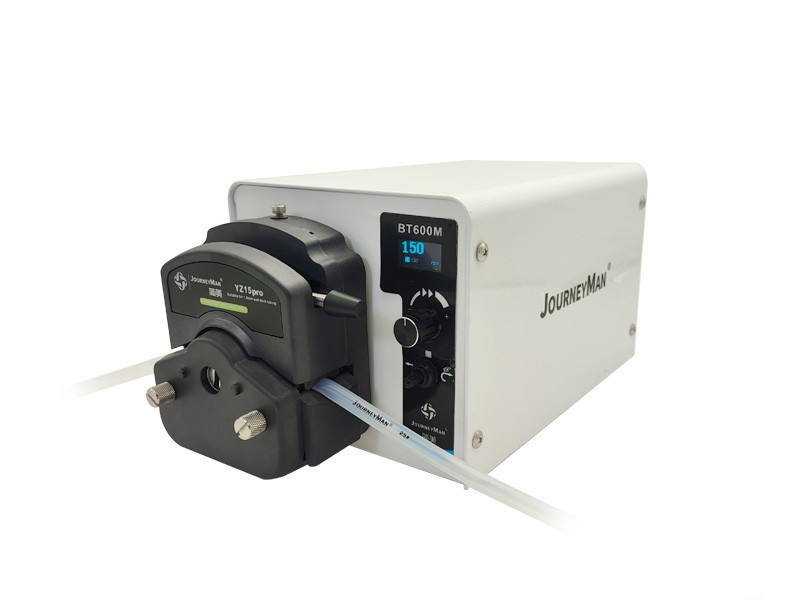

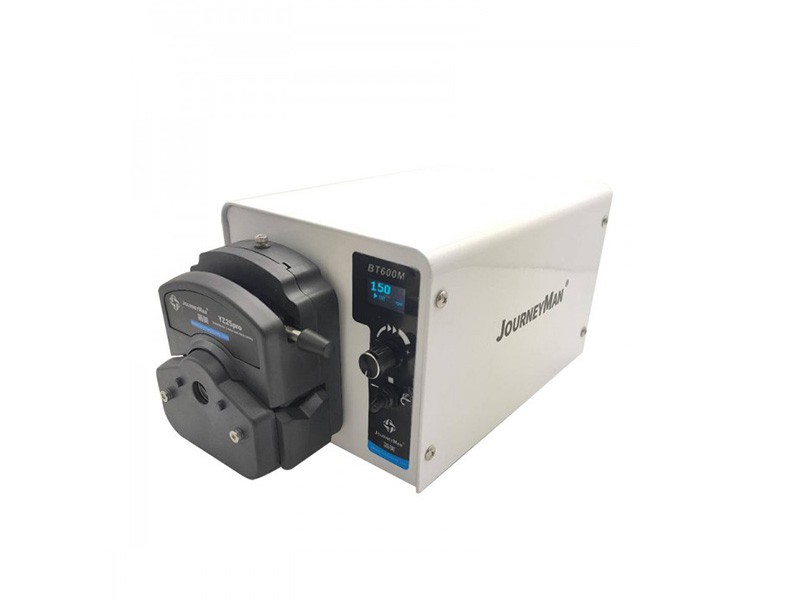

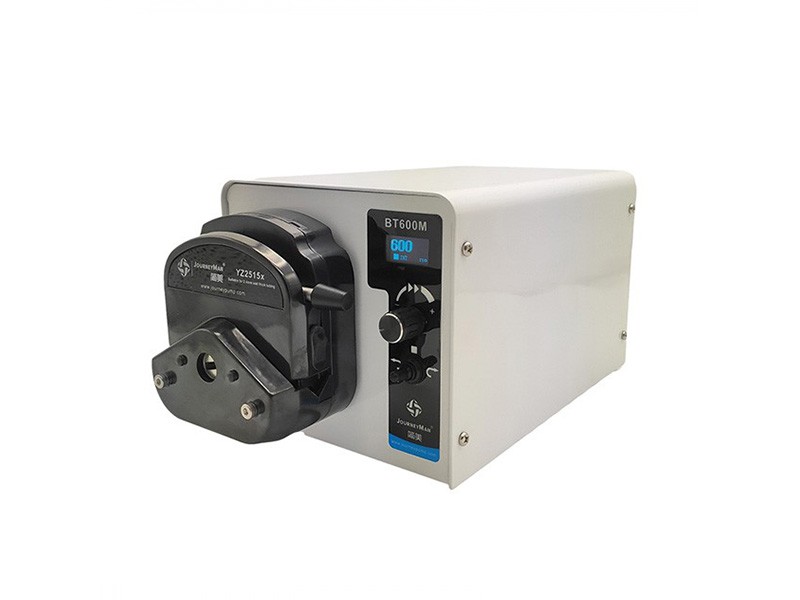

BT600M
Product model：BT600M
Reference flow： 0.07-3100ml/min
一Technical specifications：
|
Speed Range |
0.1～600 rpm |
Speed resolution |
100转以下0.1 rpm ，100转以上1rpm |
| Display mode | OLED display shows the current speed status, etc. |
Mode of adjustment |
Solid Knob Button to adjust speed, direction, start/stop, full speed |
|
External control function |
Input TTL (5VDC) level input control start stop, direction internal optocoupler isolation; Input 0-5V, 0-10V, 4-20mA, 0-10KHz signal control speed; * When using external control, you must purchase external control module or consult with the company about the connection method. | Communication function | RS485 communication function; the RS485 communication module connected with the pump and the RS232 to RS485 module of the upper computer can be provided by our company |
| Suitable for power supply |
220VAC±10﹪ 50HZ/60HZ
|
Consume power |
≤40w |
|
Working Environment |
The ambient temperature was 0-40 ° C and the relative humidity was less than 80% |
Size (length × width × height) |
235mm×155mm×145mm |
|
Drive weight |
4.3 kg (without pump head) |
IP level |
IP31 |
二Main features:
▲Stepper motor subdivision drive, high precision, smooth running.
▲Aluminum spray machine shell, solid keys, OLED display screen, unique, more widely used.
▲Solid Knob to adjust speed, direction, start and stop, easy and convenient operation, also equipped with full speed keys, can achieve rapid filling or emptying.
▲With power-down memory function, power-down after re-power, in accordance with the state before power-down to work.
▲Can communicate with PC through RS-485, the company can provide free testing software and communication protocol.
▲Can be used with optional accessories to achieve small batch filling, distribution; Accessories are time distributor, Foot Switch, contact control module and so on, special requirements can consult the company.
三Pump head can be installed
▲Pump head can be installed：YZ1515x、YZ2515x、YZ15pro、YZ25pro、KZ15、KZ25-3L、DGSeries
四Parameter flow
|
Drive type |
Suitable for pump head | Suitable for hoses |
Flow Range |
Number of channels |
|
600rpm（ml/min） |
||||
|
BT600M (600rpm) |
YZ1515x / YZ15pro / KZ15 |
13# 14# 16# 17# 18# 19# 25# |
0.07 - 2280 |
1 |
|
YZ2515x |
15# 24# |
0.17 - 2280 |
1 |
|
|
YZ25pro/KZ25-3L |
15# 24# 35# 36# |
0.17 -3100 |
1 |
|
|
DG - 1(6Roller) |
Wall thickness0.8 - 1 mm
Internal diameter≤3.17 mm
|
0.0025 - 48 |
1 |
|
|
DG - 1(10Roller) |
Wall thickness0.8 - 1 mm
Internal diameter≤3.17 mm
|
0.002 - 32 |
1 |
|
|
DG - 2(6Roller) |
Wall thickness0.8 - 1 mm
Internal diameter≤3.17 mm |
Single Channel0.0025 - 48 |
2 |
|
|
DG - 2(10Roller) |
Wall thickness0.8 - 1 mm
Internal diameter≤3.17 mm |
Single tube0.002 - 32 |
2 |
五Typical applications
※Conventional fluid delivery ※Food and beverage production dose additives ※In the technological fermentation system, acid, alkali and defoamer were added ※The lab
