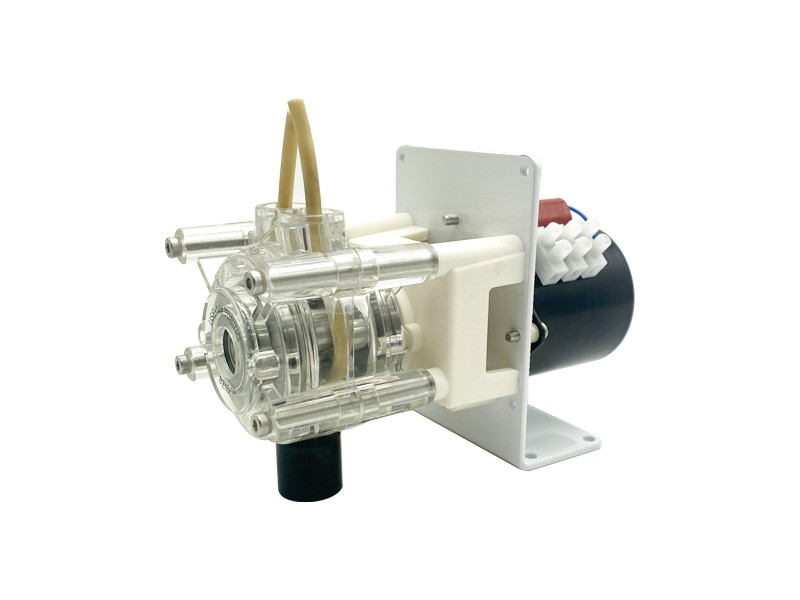

Bz-oem-ac
Product model：Bz-oem-ac
Reference flow： 0.007-2280ml/min
brief introduction:
Speed Range: 5,10,15,30,60,110 rpm, fixed speed optional
Drive Motor: AC synchronous deceleration motor
Applicable power supply: AC 220V/110V
Working environment: ambient temperature 0-40 ° C, relative humidity < 80%
Power consumption: ≤15W

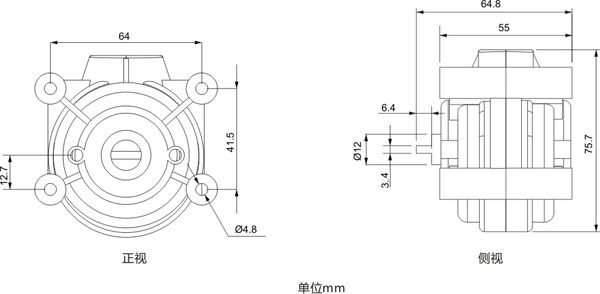

Size (length × width × height) : 107 x 80 x 110(mm)
Applicable Hose: 16 # , 25 #
Drive weight: 0.7 kg
Convenient for OEM mode matching application.
Technical specifications
| Model | BZ25 | BZ25 | BZ15 | BZ15 | BZ15 | BZ15 |
| Suitable for hoses | 35# | 24# | 18# | 25# | 16# | 14# |
| Suitable for hose outside diameter | 12.8mm | 11.2mm | 11.2mm | 8mm | 6.4mm | 4.8mm |
| Suitable for inside diameter of hose | 7.9mm | 6.4mm | 7.9mm | 4.8mm | 3.2mm | 1.6mm |
Other parameters
| Model | Number of rollers | Roller material | Shell material | Speed Range(rpm) | Maximum reference flow(ml/min) | Weight(kg) |
| BZ15-14 | 3 | Stainless steel | PC | ≤600 | 150 | 0.31 |
| BZ15 -16 | 460 | |||||
| BZ15-25 | 960 | |||||
| BZ15 -18 | 2280 | |||||
| BZ25 -24 | 1600 | |||||
| BZ25-35 | 2280 |
